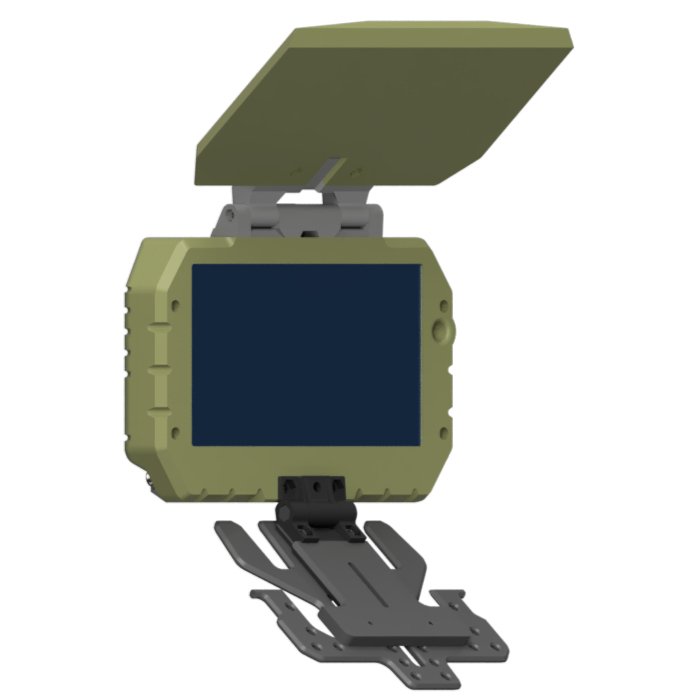

Modular VRX monitor platform
Our design goals were:
- Base platform designed for rapid customization
- Utilize simple and robust commercial off the shelf electronics
- Utilize FDM small scale manufacturing for rapid design iterations and customization
- Integrate directional Antenna housing into screen cover
- Fit best-in-class TrueRC X1Air and/or X2Air directional Antennas
- Fit best-in-class TrueRC X1Air and/or X2Air directional Antennas
- Create multiple interchangeable VRX modules
VRX MODULE OPTIONS
| VRX Module |
Variants |
Internal Antenna Connectors | HDMI Mini |
| Avatar VRX Module |
N/A |
UF.L1 (x4) | HDMI Full |

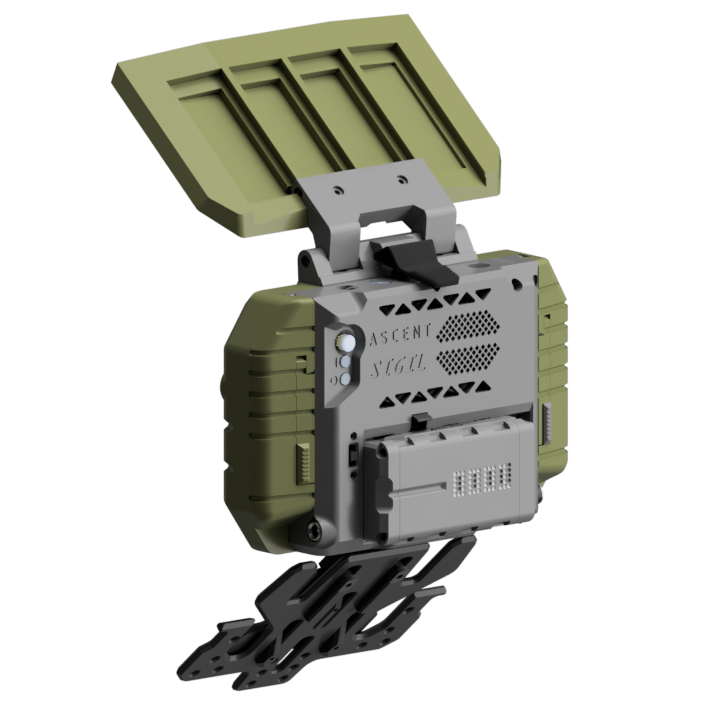

| Ascent VRX Module |
Caddx Walksnail Ascent VRX Standard (Gray casing) |
MMCX (x2) |
HDMI Full |
|
Caddx Walksnail Ascent Industry VRX (White casing) |
MMCX (x2) |
HDMI Full |
|
|
Caddx Walksnail Ascent MAX VRX (Black Casing) |
MMCX (x2) |
HDMI Full |
|
| Photon Fiber VRX Module | N/A | N/A | HDMI Full |
| Analog VRX Module |
Universal, supports goggle VRX units such as Skyzone Steadyview, Speedybee VRX , ImmersionRC RapidFIRE, TBS Fusion V2, Foxeer Wildfire / Wildfire 2 etc |
SMA (x2) |
9-pin Header/ |
POWER MODULE
| Part | Detail | Purpose |
| Input 1 |
XT30UF Female |
Primary Power Input, works with 2S QD Battery (included) |
|
Input 2 |
5521 DC Jack Female |
Aux power input |
|
Output 1 |
5521 DC Jack Male |
VRX Power |
|
Output 2 |
USB-C |
Monitor Power |
|
Power Switch |
2pos rocker or 3pos slide switch |
UP=ON Drives MOSFET Switch |
|
MOSFET Switch |
160A Burst Rated |
Reduces wear on physical switch which is not rated for full amperage draw |
|
Ideal Diode |
XL1051 | Automatically selects highest input voltage and cuts off lower to prevent damage to power source. Prevents voltage mixing of multiple inputs |
|
BEC Step Down Converter |
2-6s-5v | Converts voltage from inputs to monitor voltage for output 2 |
Analog Header Pinout
| PIN | Signal |
| PIN 1 | GND |
| PIN 2 | +5V |
| PIN 3 | Audio Out (Unused) |
| PIN 4 | Video Out |
| PIN 5 | GND (Unused) |
| PIN 6 | CH1 (Unused) |
| PIN 7 | CH2 (Unused) |
| PIN 8 | CH3 (Unused) |
| PIN 9 | GND (Unused) |
